Description
FAdP IO

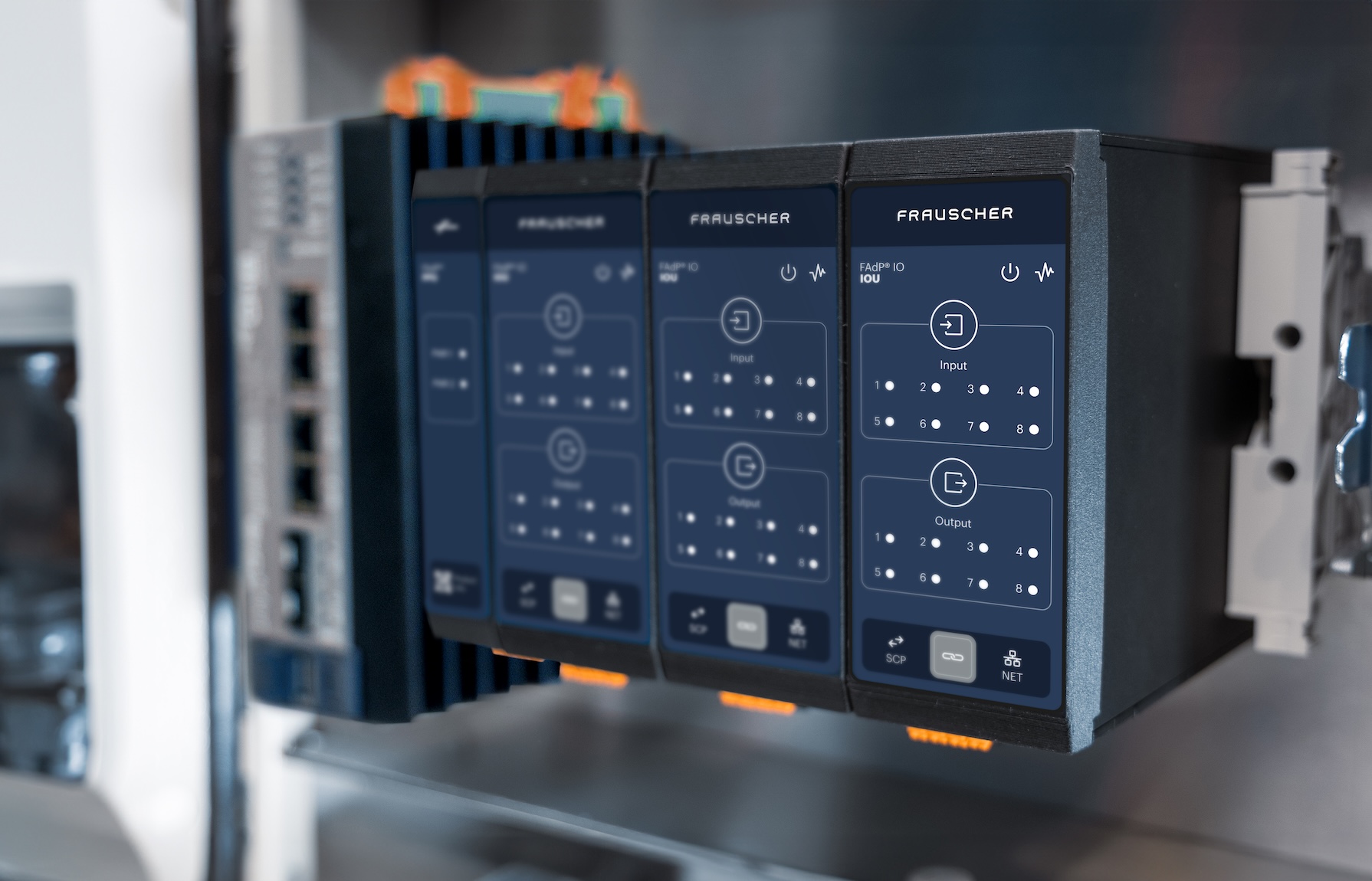

FAdP IO is a SIL 4 object controller for versatile wayside applications, built on the modular Frauscher Advanced Platform FAdP. EULYNX-compliant and cyber secure by design, it enables the safe transmission of input/output data across railway applications — whether for data transmission, generic I/O applications, or the digitalisation of analogue legacy systems. This way, the solution bridges modern IP-based architectures with existing infrastructure, enabling flexible, step-by-step modernisation in brownfield environments.
Key benefits:
- Modular and scalable design
- One configurable Input/Output-Unit (IOU) for every element
- Easy mapping of inputs and outputs
- Low space requirement
- Simple mounting and fault-free installation
- Internal, redundant bus communication
- Communication designed for category 3 networks (EN 50159)
- Integrated condition monitoring
Product details:
- Safety level: SIL 4
- Baseline release: EULYNX Baseline 4.2 and higher
- Interface type: SCI, SDI, SMI, SSI
- RaSTA and OPC-UA interfaces
- Mounting: DIN rail
- Up to 20 IOUs in one system
- Up to 160 inputs and 160 outputs per RaSTA connection
- 4 additional non-safe outputs per IOU
- Temperature range: -40 °C to +70 °C
- Humidity: 5% to 100% RH
- Degree of protection: IP20
