Description

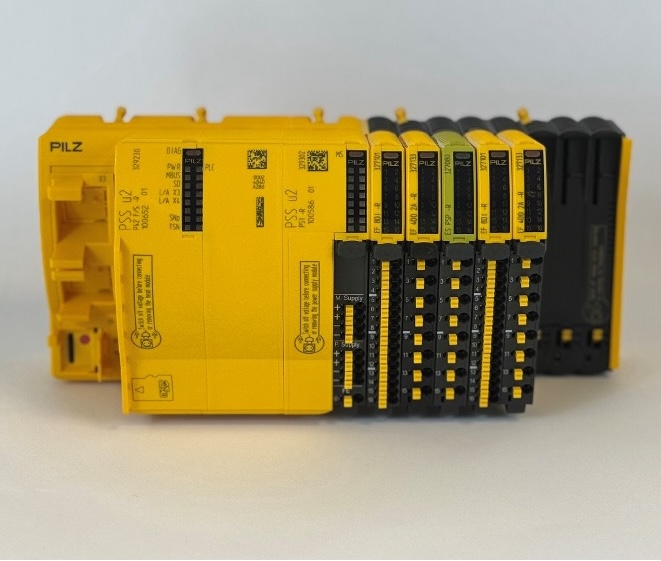

PEOC IO 8/4
The PEOC IO is an EULYNX compliant object controller for the subsystem Generic IO (IO) for different field elements as movable bridges and keylocks.
Product details:
- The PEOC IO exists in different configurations to digitise your application in the most efficient way:
- PEOC IO 8/4:
- 1 PLC head module including preinstalled certified application software
- 8 fail-safe SIL4 (dual channel) digital inputs
- 4 fail-safe SIL4 (dual channel) digital outputs with up to 2A switching current
- Certified software function blocks (SCI Gateway, Subsystem IO)
- Power Supply: 24 V DC
- Operating Temperature: -40 °C to +70 °C
EULYNX compliance:
- BL4R2
- SCI, SDI, SMI, SSI
