Description

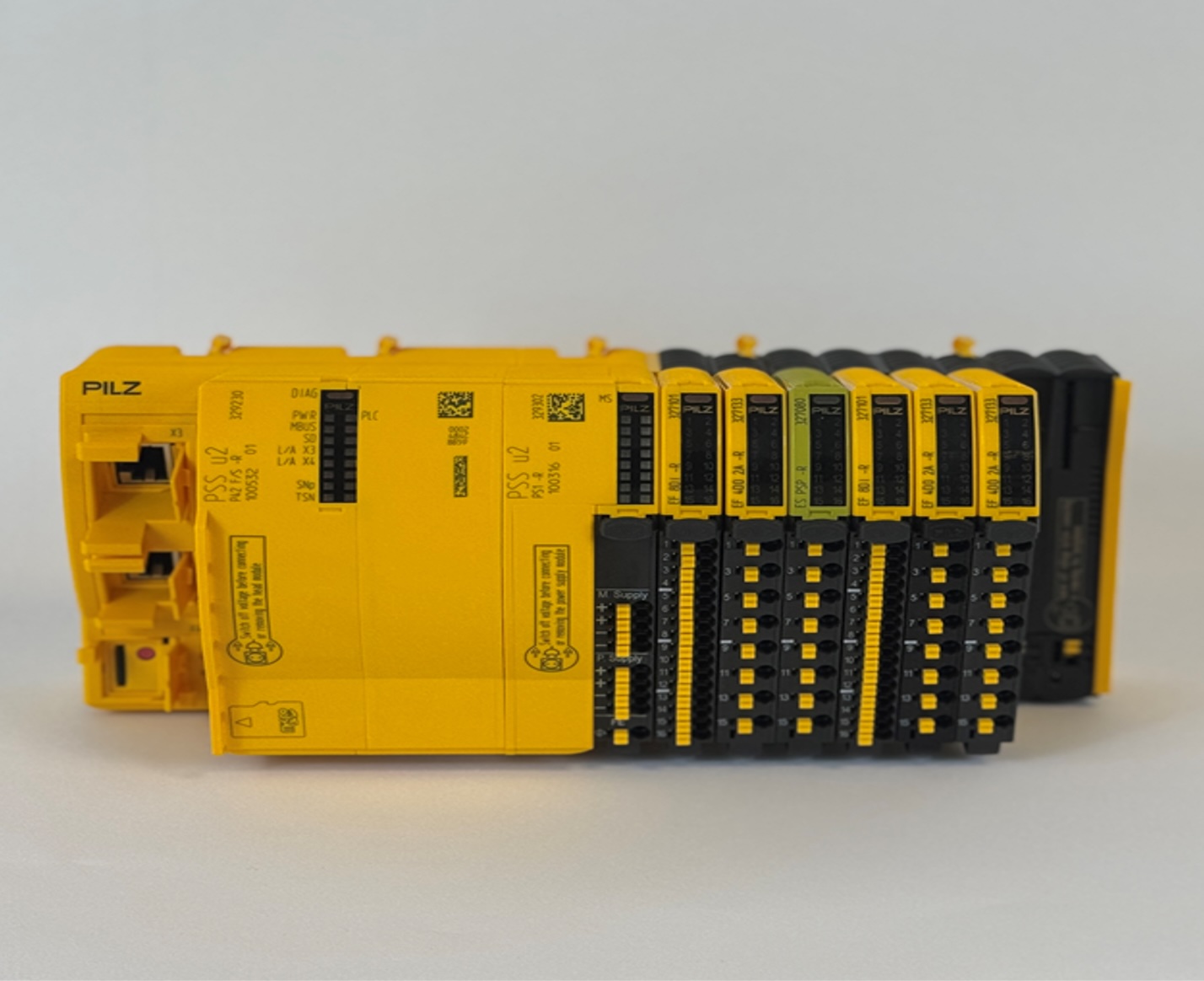

PEOC P Non4wire
The PEOC P Non4wire is an EULYNX compliant object controller for the subsystem point (P) for a field element point with a “Non 4-wire” interface.
Product details:
- The PEOC P Non4wire includes:
- 1 PLC head module including preinstalled certified application software
- 8 fail-safe SIL4 (dual channel) digital inputs
- 4 fail-safe SIL4 (dual channel) digital outputs with up to 2A switching current
- 1 CAN module for non-safe communication
- Certified software function blocks (SCI Gateway, Subsystem P)
- Decentralized installation close to the track
- Hot swappable modules for fast and simple replacement
- Power Supply: 24 V DC
- Operating Temperature: -40 °C to +70 °C
- Customizable for points with multiple motors
- Multi Element Controller (MEC) capable by expansion pack (PEOC P Expansion)
EULYNX compliance:
- BL4R2
- SCI, SDI, SMI, SSI
Product document materials:
- System Overview PSSrail: The safe railway control system PSSrail from Pilz – Pilz INT
- Pilz E-Shop: Railway Controllers: PSS u2 Controller | PLC controllers | Controller | Product view | Pilz Site
- Pilz E-Shop: I/O Modules: PSSuniversal 2 – I/O modules | I/O systems | Controller | Product view | Pilz Site
- Programming Tool: Pilz Application Suite (PAS4000): Software for the automation system PSS 4000 – Pilz INT
