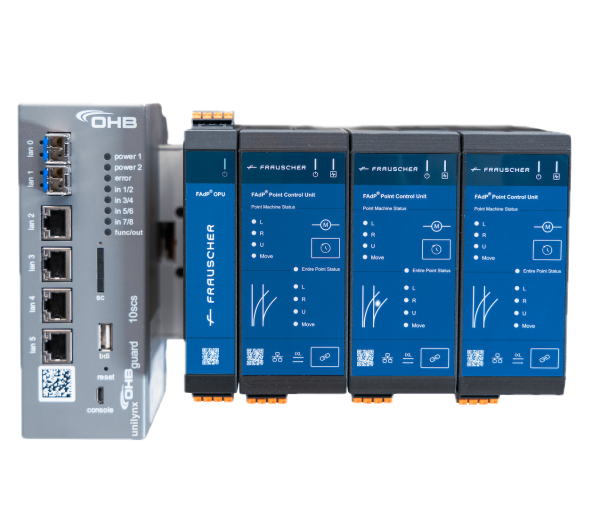

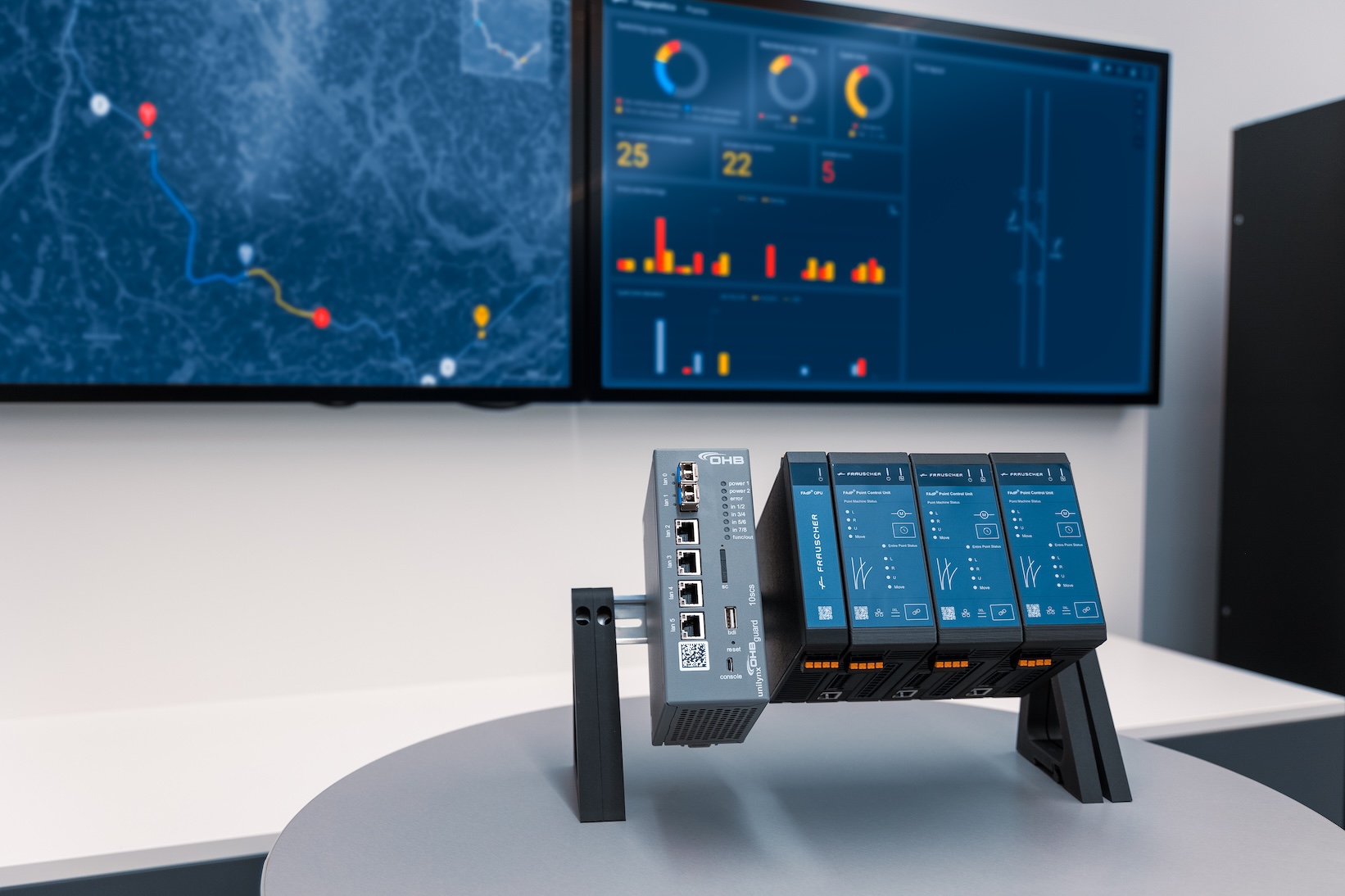

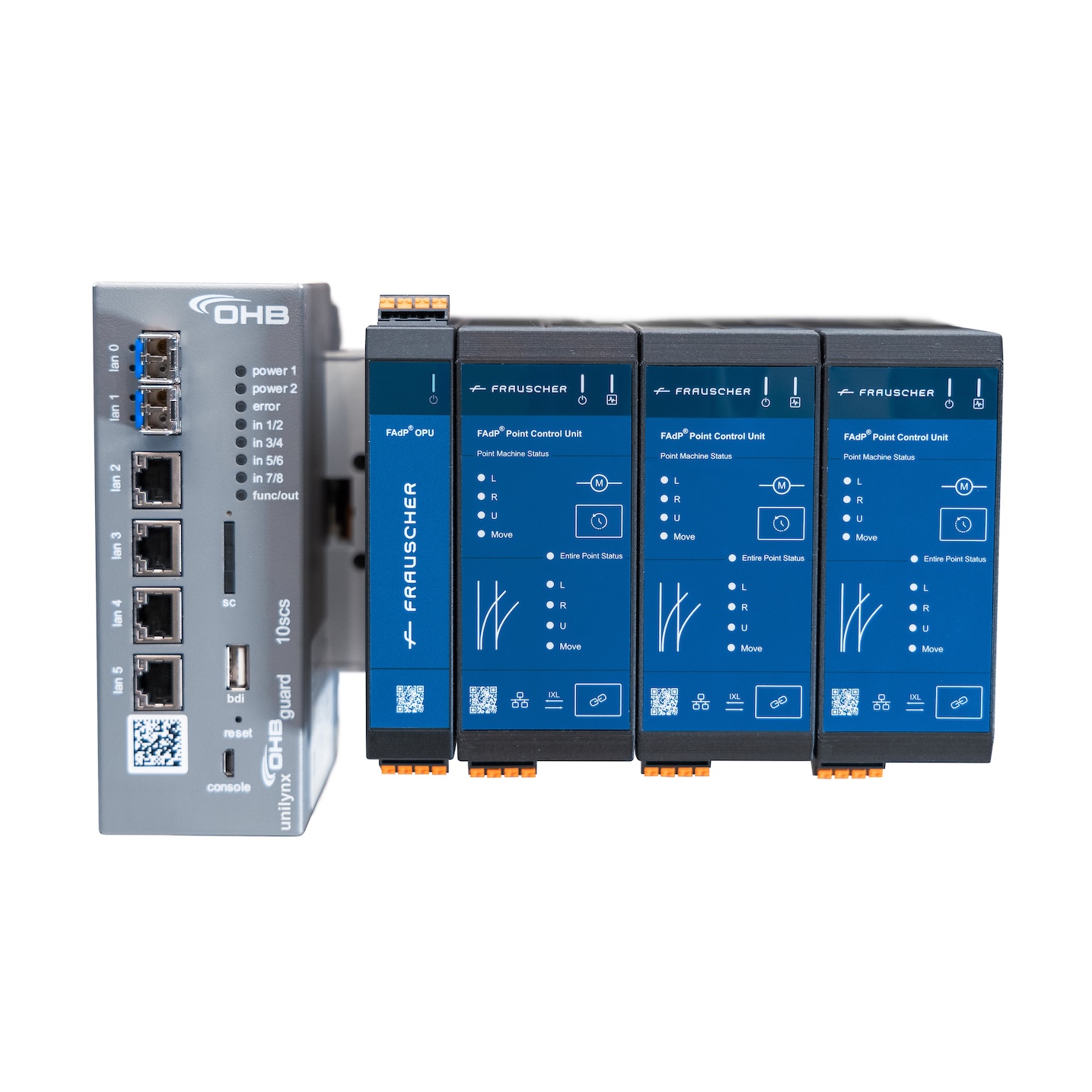

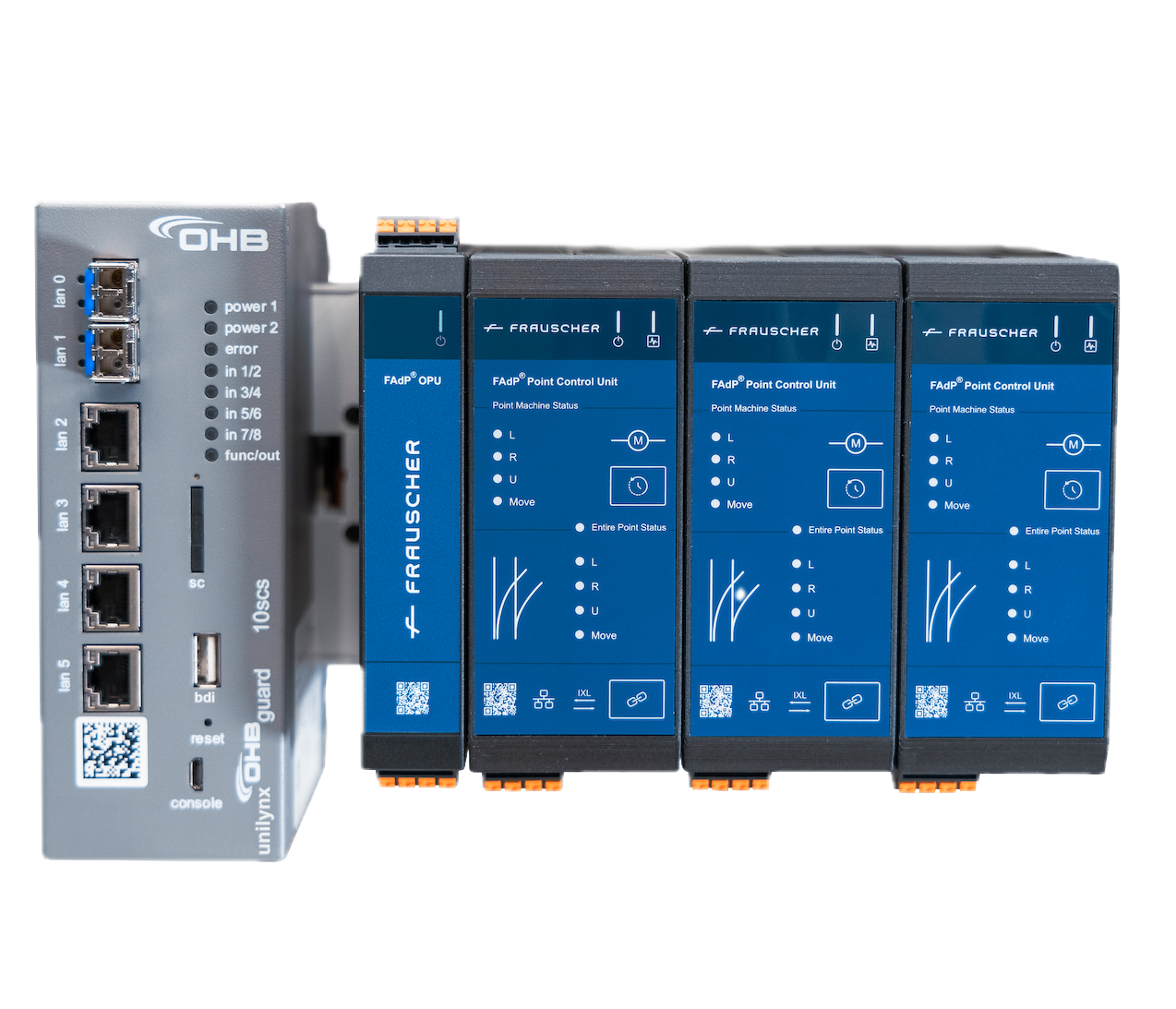

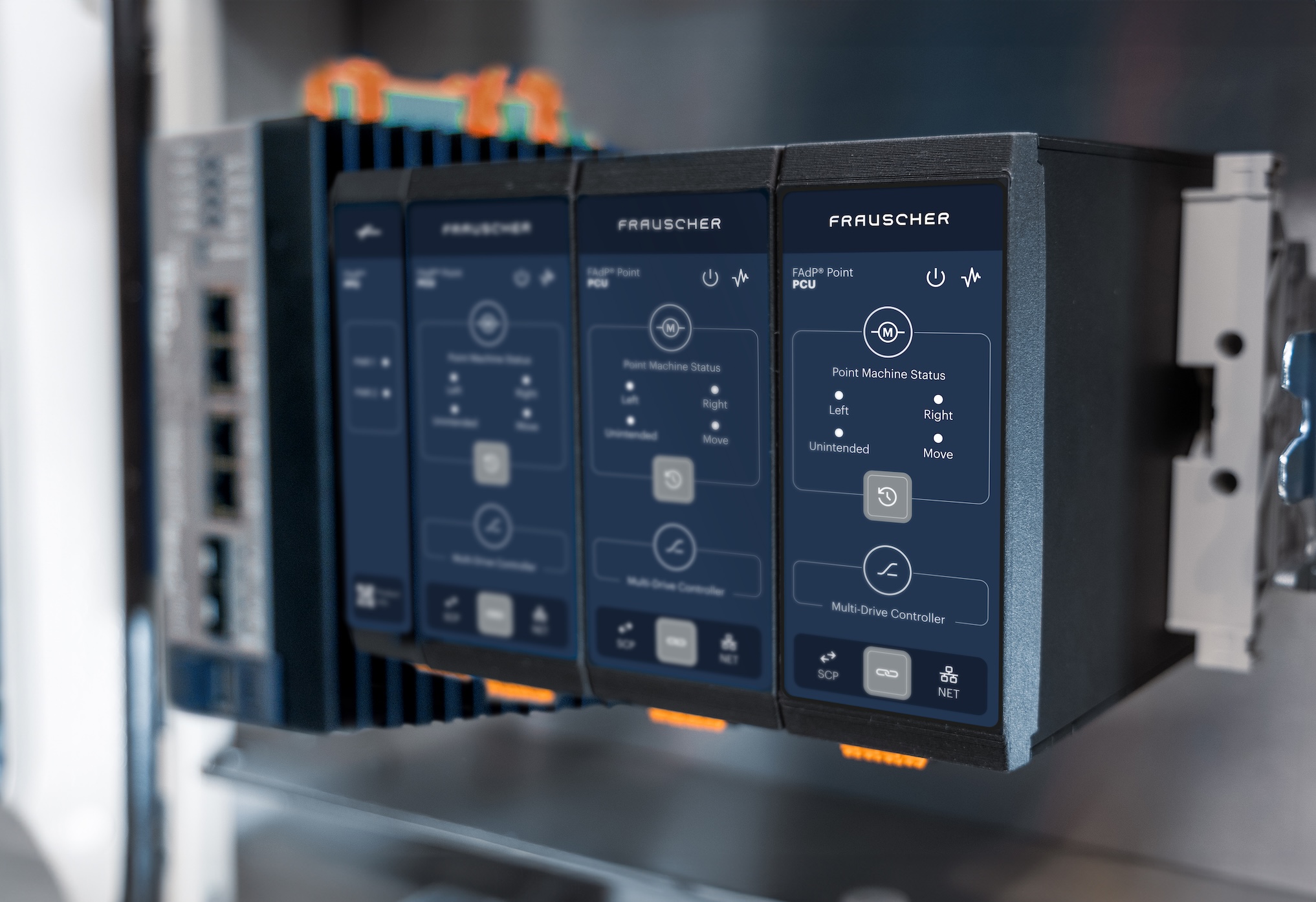

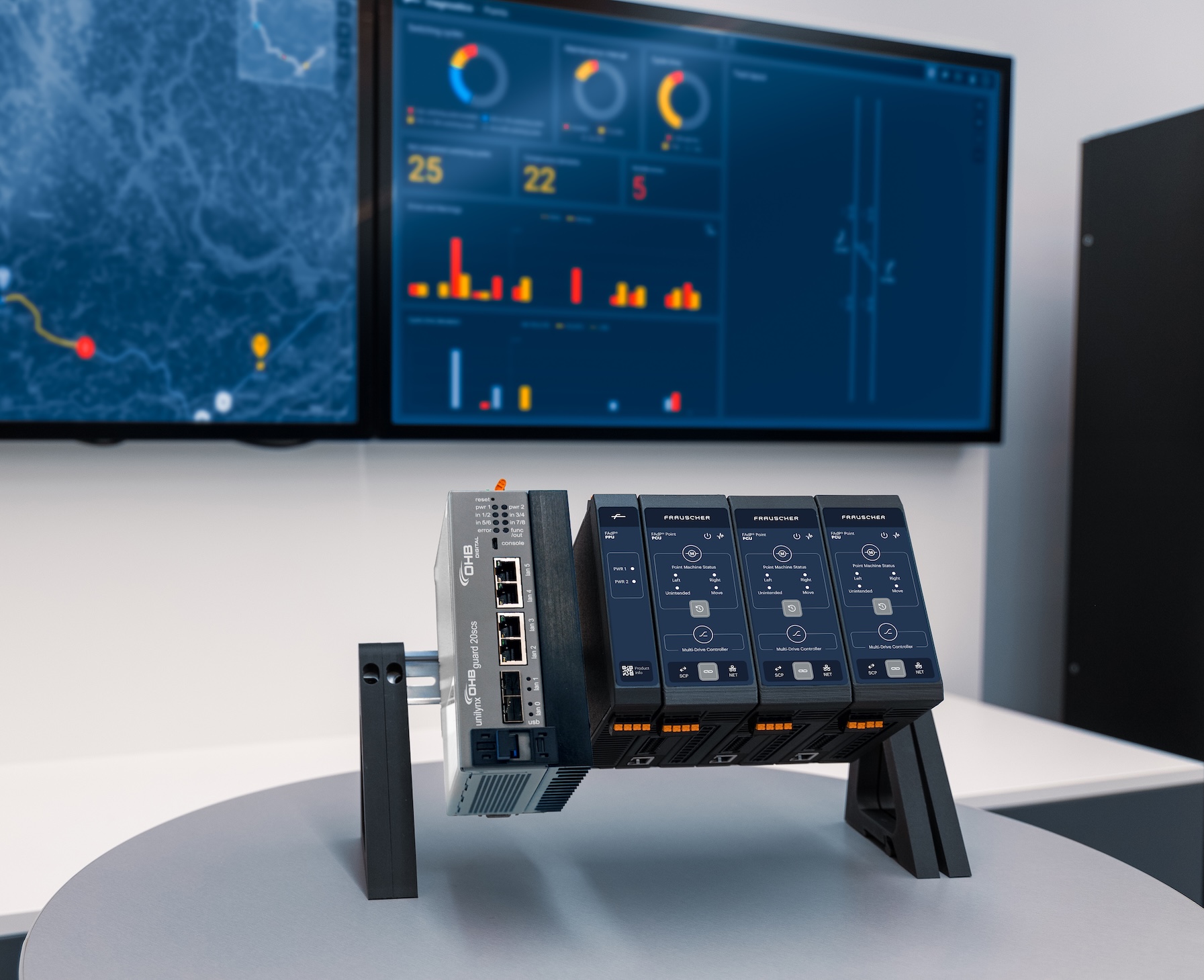

FAdP Point
FAdP Point enables safe control, detection, and monitoring of point machines through standardised interfaces such as EULYNX and RaSTA. Its high flexibility allows seamless integration with various types of point machines. The Frauscher Point Control System provides all essential data for monitoring and control, while detecting changes in current, voltage, cycle time, and phase shift to identify potential issues early. Whether for upgrades or new installations, FAdP Point offers a future-proof solution that enhances safety, reliability, and operational efficiency.
Key benefits:
- Modular and scalable design
- Low space requirement
- Simple mounting and fault-free installation
- Internal, redundant bus communication
- One hardware for various wiring configurations
- Support of single- and multi-motor turnouts
- Communication designed for category 3 networks
- Integrated condition monitoring
Product details:
- Safety level: SIL 4
- Wiring configurations: 4-, 7-, 9-, and 11-wire setups
- Number of managed trackside devices: up to 20 point machines
- Power supply: Redundant power supply 2 x 24 V DC
- Temperature range: -40 °C to +70 °C
- Humidity: 5% to 100% RH

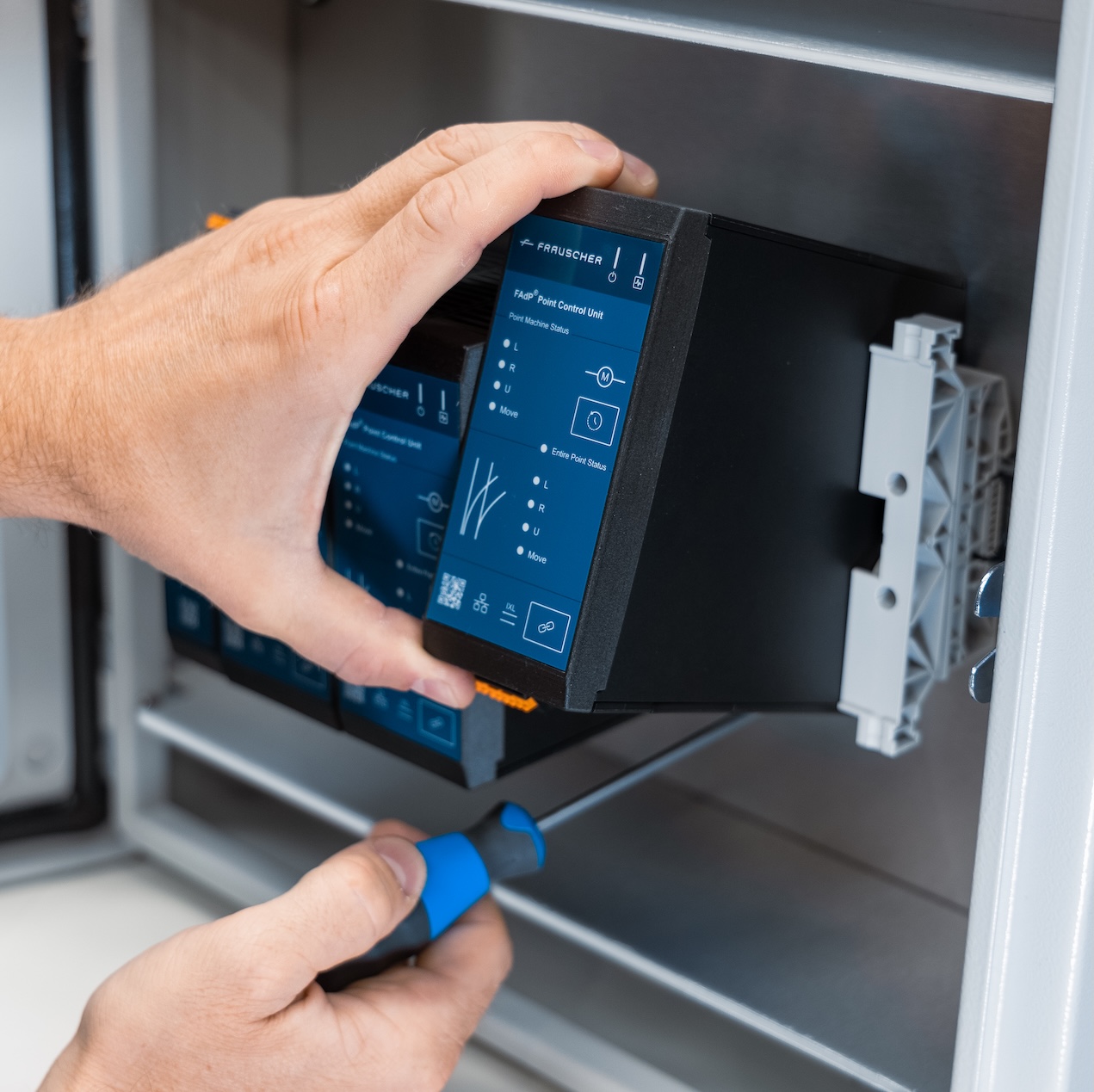

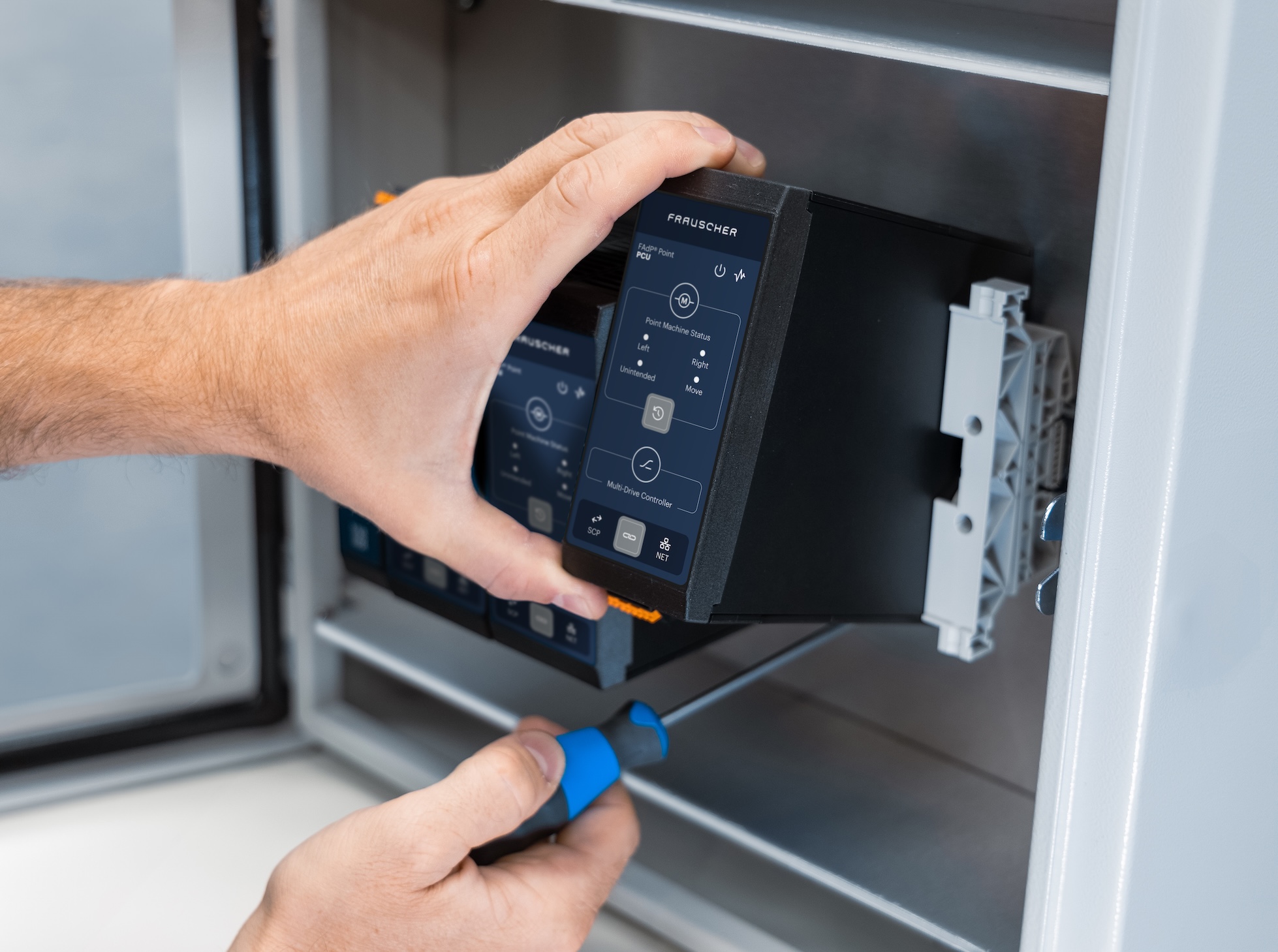

- Mounting: DIN rail
- Degree of protection: IP20
EULYNX compliance:
- Baseline release: EULYNX Baseline 4.2
- Interface type: SCI, SDI, SMI, SSI
