Description

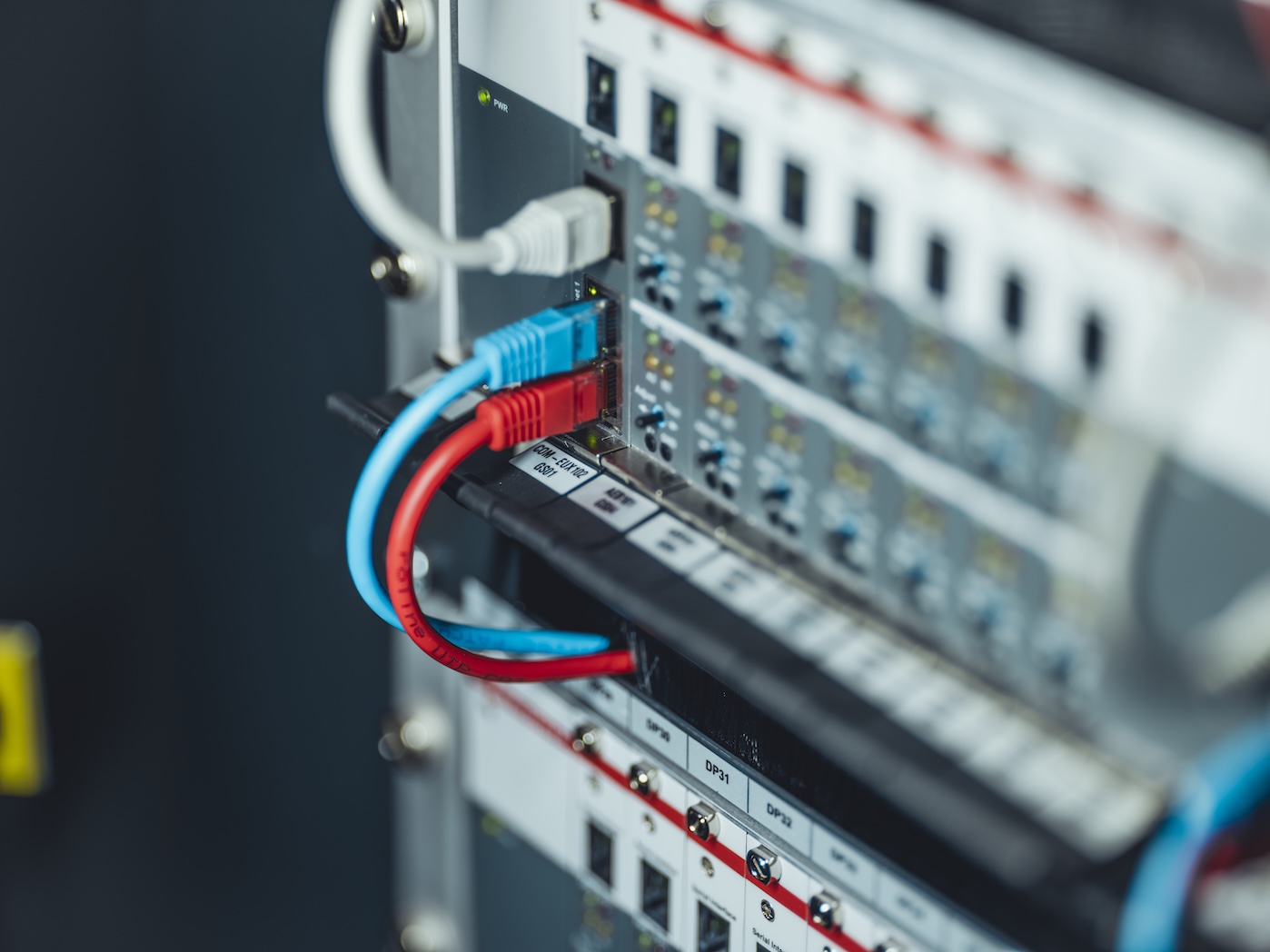

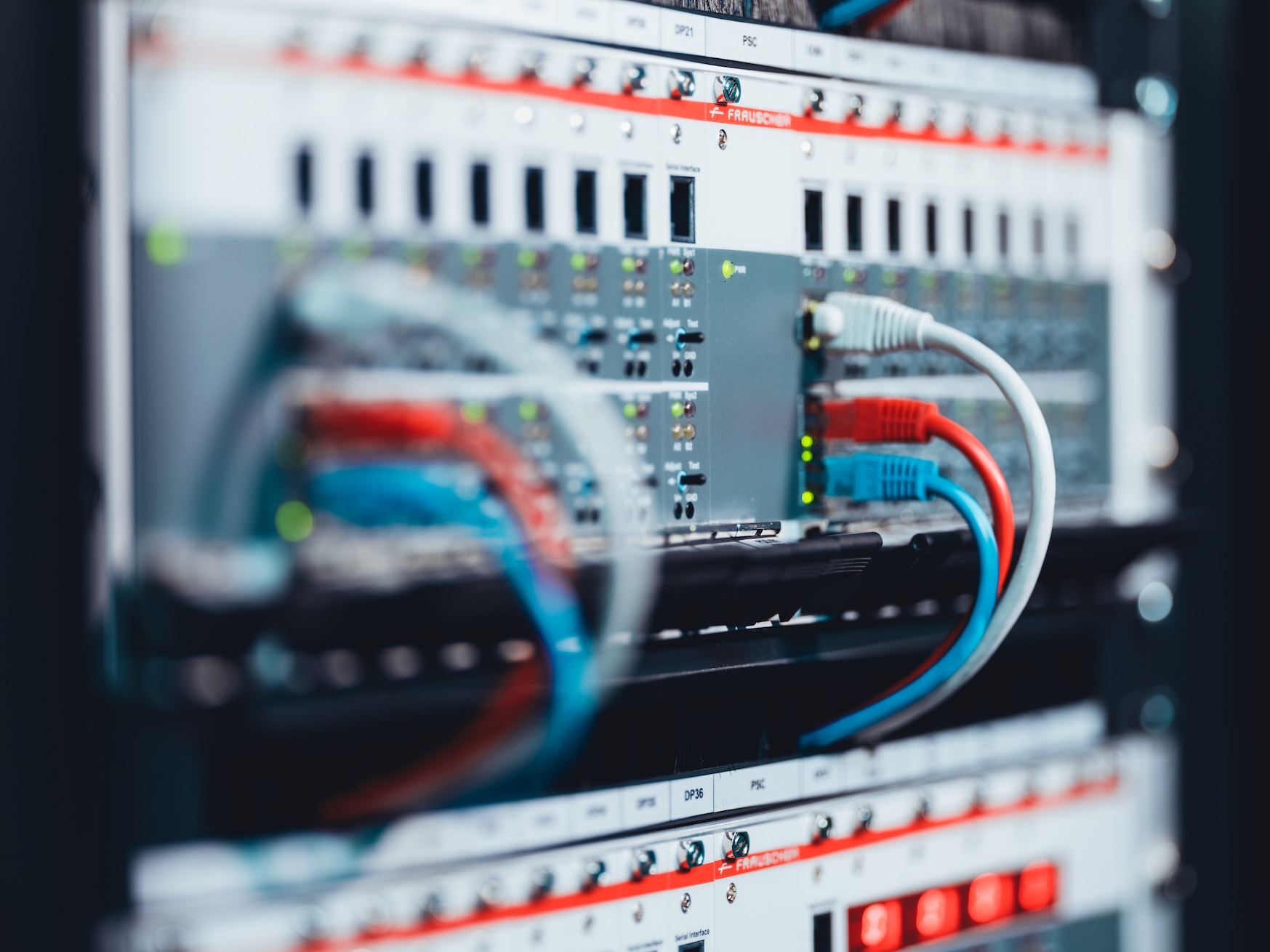

Frauscher Advanced Counter FAdC® with Frauscher Connect

The Frauscher Advanced Counter FAdC® with Frauscher Connect offers a highly flexible architecture that supports a wide range of configurations, making it equally suitable for small, large, and complex railway systems. It supports both standardised and customer-specific interfaces, enabling seamless integration with electronic interlockings via EULYNX, Frauscher Safe Ethernet (FSE), or other individual protocols. With communication capabilities aligned with the latest EULYNX standards, the system ensures maximum independence and interoperability. Furthermore, it is designed for Category 3 network communication and supports SDI and SMI over OPC UA.

Key benefits:

Highest system availability
Simple and flexible configuration
Flexible and scalable architecture
Low maintenance effort
Minimum lifecycle costs
Advanced diagnostic options
Communication designed for category 3 networks
Support of redundant architectures
Eddy current break robustness
Proven quality

Product details:

Safety level: SIL 4
Number of managed trackside devices:
Support of up to 6 RaSTA connections; via each RASTA connection information of 40 track sections can be forwarded
Speed: 450 km/h
Power supply: +19 V DC to +72 V DC
Temperature range: -40 °C to +70 °C
Humidity: up to 100%
Degree of protection: IP68
Advanced features: Counting Head Control CHC and Supervisor Track Section STS

EULYNX compliance:
