E-wOC P (Point Object Controller)


Generic information

Vendor:
Category:

Have a question?

Contact ELECTRANS:
ELECTRANS


    Description

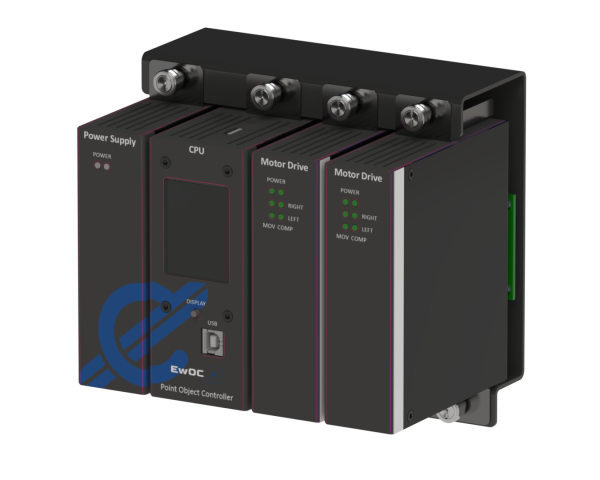

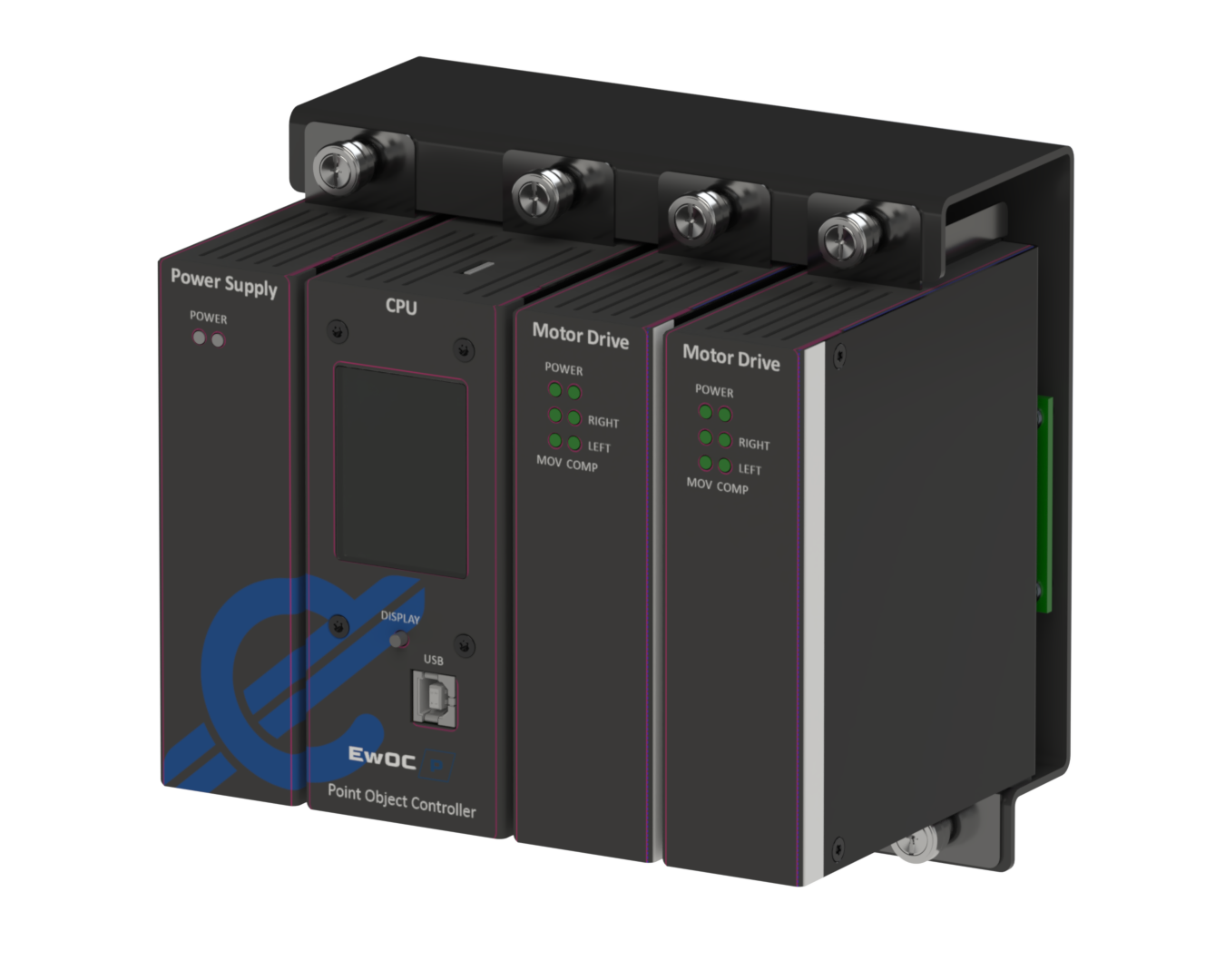

    EwOC-P

    Advanced maintenance diagnostics As railway systems evolve toward greater automation and interoperability, ELECTRANS presents the EwOC-P a compact and modular wayside object controller designed to manage a wide range of point machines in critical railway environments. Built on a robust 2oo2 (two out of two) safety architecture, EwOC-P ensures fault tolerance and high reliability, making it ideal for safety-critical applications.

    This advanced controller supports secure communication via the EULYNX SCI_P standard, contributing to the harmonization of signaling interfaces across European railway networks. Its modular design allows for flexible adaptation to different types of point machines and electrical interfaces, simplifying integration into both legacy and modern infrastructures.

    Certified to SIL-4 (Safety Integrity Level 4) under CENELEC standards, EwOC-P guarantees the highest level of safety required for railway signaling systems. It also supports extended temperature ranges, ensuring consistent performance even in harsh environmental conditions.

    Key Features

    • 2oo2 safety architecture for fault tolerance
    • Safety Integrity Level SIL-4
    • Modular and compact design for flexible integration
    • Secure EULYNX communication interface
    • Wide compatibility with various point machine types
    • Extended operating temperature range for extreme environments
    • MTTR < 30 minutes

    Compliance with European Standards

    Fully compliant with key railway standards including:

    • EN 50126, EN 50128, EN 50129 (RAMS and software/hardware integrity)
    • EN 50121-4 (EMC)
    • EN 50124-1, EN 50125-3 (environmental and isolation)
    • EN 60068 series (climatic and mechanical tests)
    • EN 60259, EN 50102 (IP and IK protection)
