    EwOC-LS

    Empowering the future of rail transport through innovation, standardization, and sustainability.

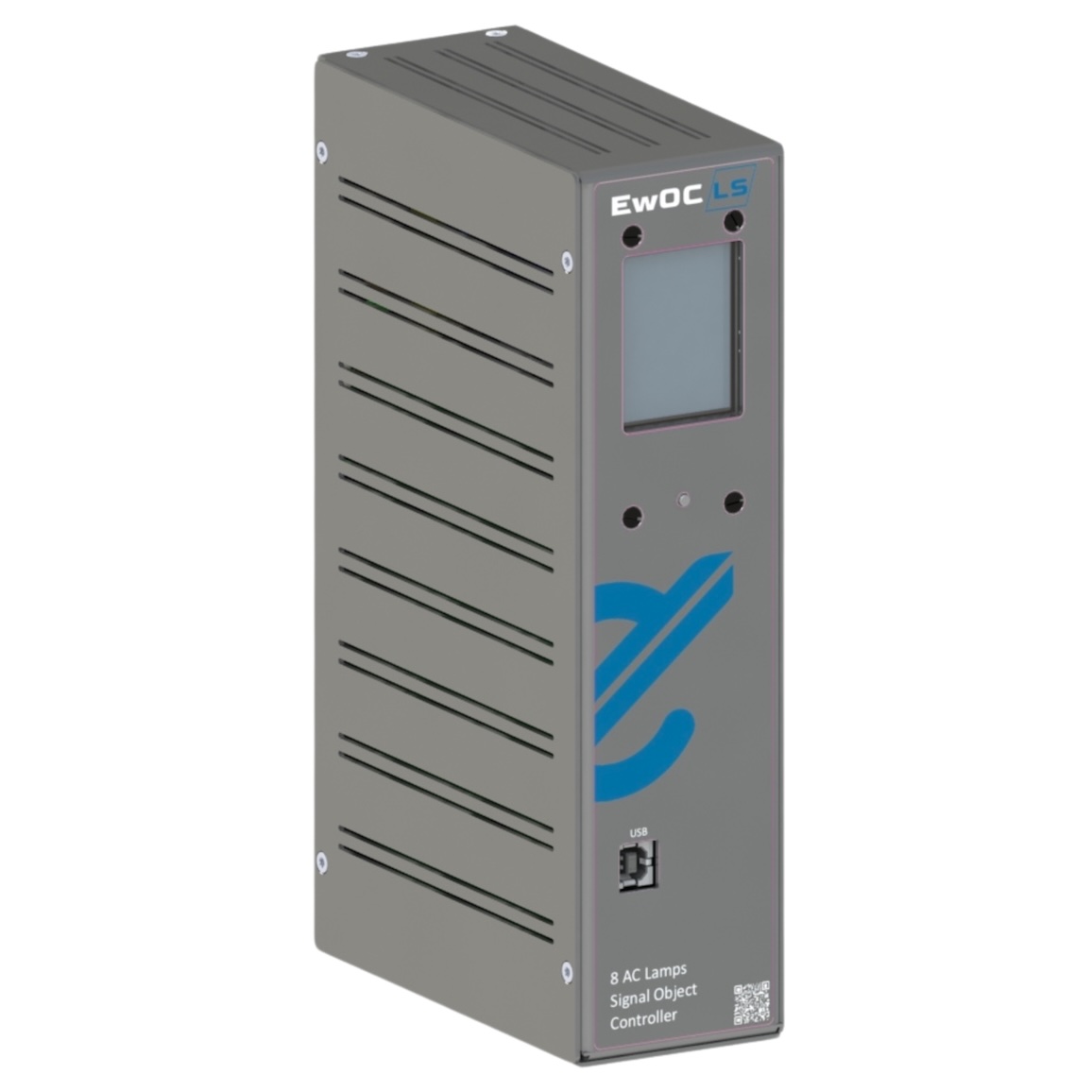

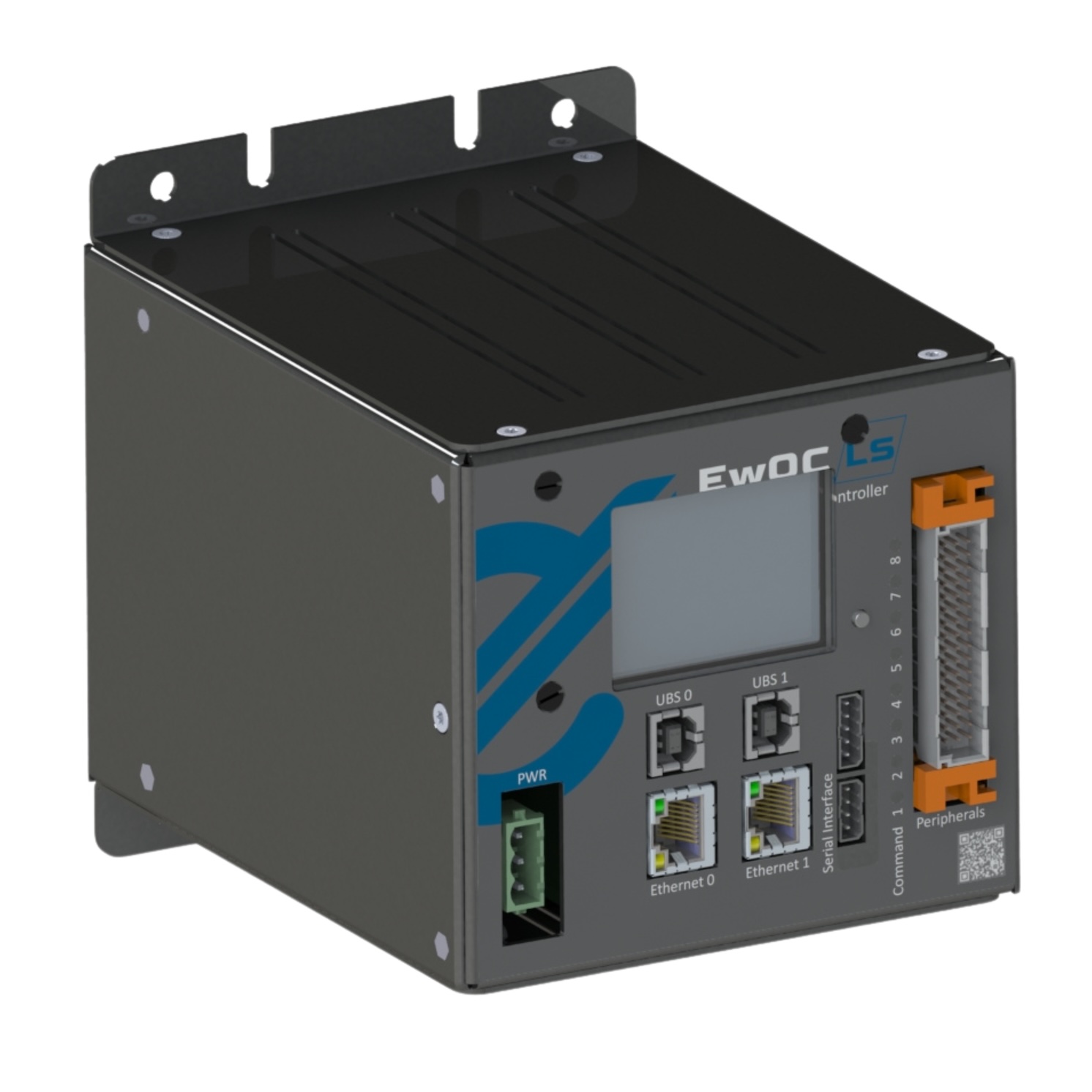

    In an era where railway systems are rapidly evolving toward digitalization and interoperability, ELECTRANS introduces the EwOC-LS a cutting-edge LED signal controller designed to meet the highest standards of safety, reliability, and efficiency. Tailored for Railway, Metro, Tram, and LRT environments, EwOC-LS is a key component in modern signaling systems, enabling smarter infrastructure with reduced maintenance and enhanced performance.

    This pioneering device is the first of its kind from ELECTRANS to integrate secure communication via the EULYNX SCI_LS protocol, supporting the harmonization of signaling interfaces across Europe and paving the way for future-ready rail networks.

    Key Technical Features

    • Safety Integrity Level SIL-4
    • High availability: 99.9997%
    • Lifetime: over 20 years
    • Operating temperature: -40ºC to 75ºC
    • MTTR < 30 minutes
    • Compatible with both legacy and new signal systems

    Applications

    • LED signals for main, dwarf, and alphanumeric types
    • Compatible with AC signals (bulb and LED)
    • DC version available for new installations or high-brightness requirements

    Main Benefits

    • Control of up to 8 independent LED lights
    • Brightness up to 3000 Cd
    • Low power consumption
    • Fiber optic communication
    • Reduced cabling and interlocking hardware
    • LED failure monitoring
    • Internal humidity and temperature supervision
    • Advanced maintenance diagnostics

    Compliance with European Standards

    Fully compliant with key railway standards including:

    • EN 50126, EN 50128, EN 50129 (RAMS and software/hardware integrity)
    • EN 50121-4 (EMC)
    • EN 50124-1, EN 50125-3 (environmental and isolation)
    • EN 60068 series (climatic and mechanical tests)
    • EN 60259, EN 50102 (IP and IK protection)
