E-AC-214 PLUS

Since 1995, ELECTRANS has been a trusted provider of axle counter systems, delivering robust and reliable solutions for Railway, Metro, Tram, and LRT infrastructures. The E-AC-214 Plus is the latest evolution of axle counters, designed with a 2oo2 microprocessor-based safety architecture, ensuring secure and fault-tolerant train detection in even the most demanding environments.

This system provides precise section occupancy information, train speed, and directional detection, making it ideal for both conventional and high-speed rail applications. With SIL-4 certification and compliance with CENELEC standards, the E-AC-214 Plus guarantees the highest level of safety and reliability.

Its rugged design includes vandal-resistant detector heads rated up to IP68, and supports operation in extreme temperatures ranging from -40ºC to 85ºC. The system is capable of detecting trains traveling at speeds up to 350 km/h, ensuring performance across a wide range of operational scenarios.

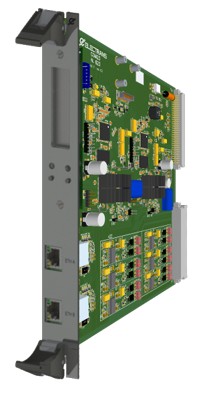

Additionally, the E-AC-214 Plus provides a secure EULYNX SCI_TDS interface with third-party electronic interlocking systems via the COM23 safety communication board, installed in the CE-214 Central Evaluator.

System Architecture

• Trackside Equipment

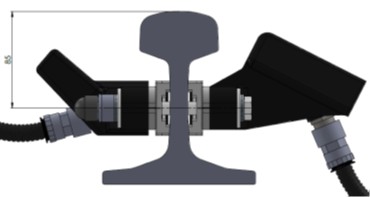

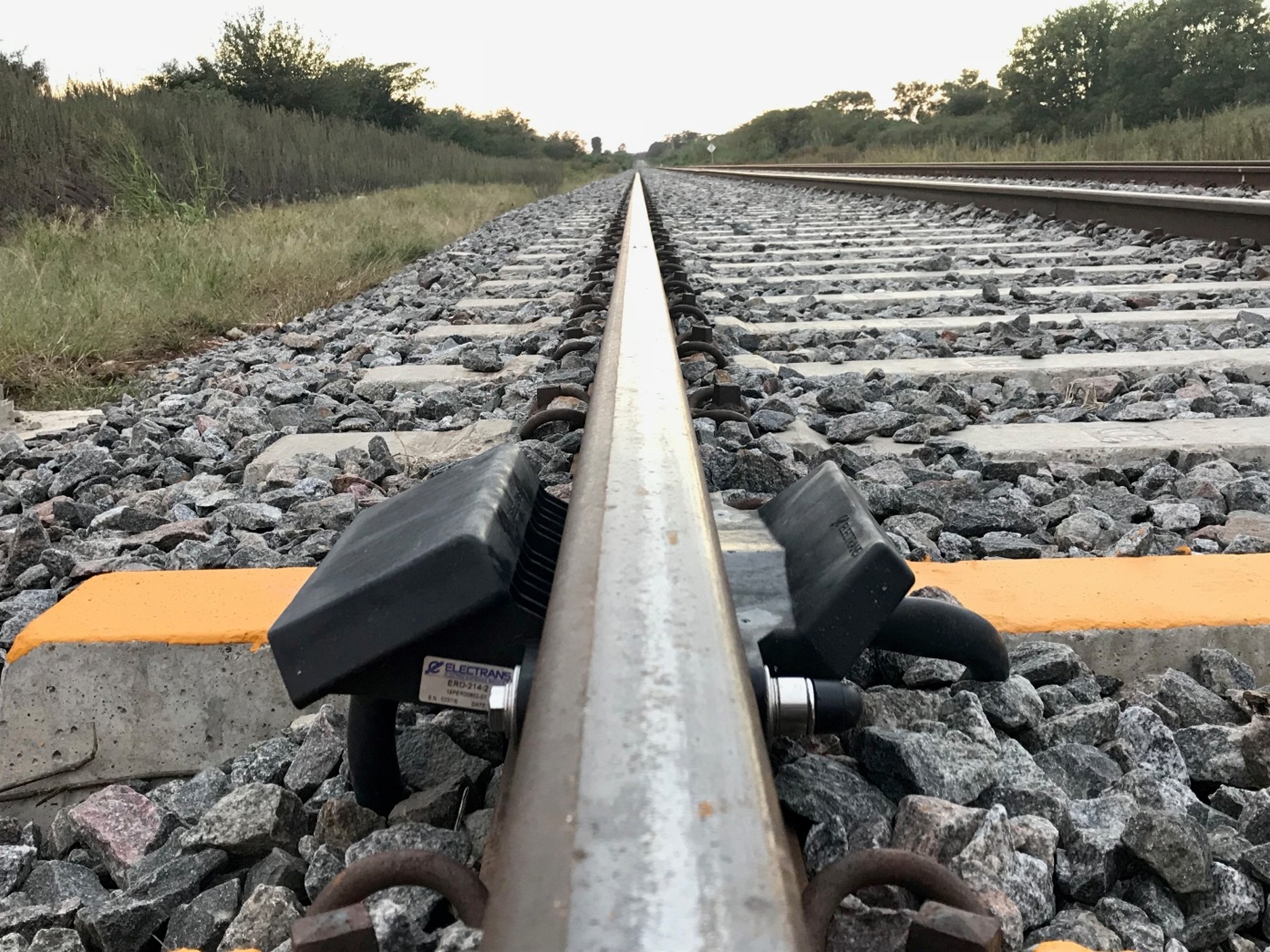

  • ERD-214 Detector Head: Mounted on the rail, detects wheel flanges of all rolling stock types, providing directional and speed data, as well as wheel parameters.
  • TU-214 Trackside Unit: Processes data from the detector head and communicates digitally with the central evaluator.
• Cabin Equipment
  • CE-214 Central Evaluator: Rack-mounted electronic unit that centralizes and processes data from trackside equipment, interlocking systems, and other evaluators. Provides real-time information on section occupancy, train speed, and directional detection. Includes the COM23 card for secure SCI_TDS communication. Can be installed in outdoor cabinets.

Applications

• Safe train detection for Railway, Metro, Tram, and LRT
• Level crossing protection
• Depot and yard management
• Intelligent wheel parameter analysis
• Predictive maintenance systems
• CBTC backup systems

Advanced Communication & Integration

• No forced ventilation required
• Efficient cable usage
• Multiple IXL communication interfaces
• Secure digital communication protocols
• Safety-rated I/O
• BUS architecture
• RS-485 communication up to 1200 m
• Fiber optic support
• V23 modem communication up to 30 km
• Up to 64 detection points per CPU
• Up to 64 track sections
• Functional redundancy strategies to maximize system availability

Compliance with Standards

• Safety & RAMS: EN 50126, EN 50128, EN 50129
• Security Communications: EN 50159
• Electromagnetic Compatibility: EN 50121-4
• Isolation Coordination: EN 50124
• Environmental Conditions: EN 50125-3
• IP Protection: EN 60529
• IK Protection: EN 50102
• Axle Counter Parameters: EN 50617-2
• Interoperability Requirements: ERA/ERTMS033281
• ADIF Specification: ET 03.365.310.6_ED3M1
